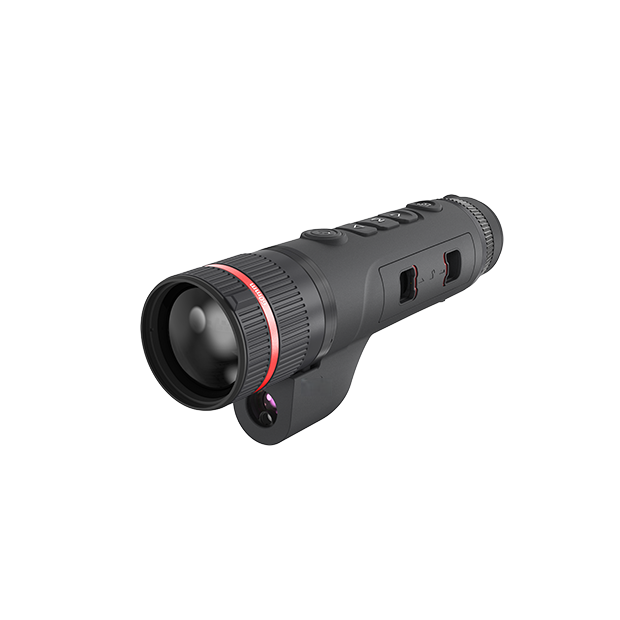

Handheld Thermal Monocular—TJ650

The TJ650 Handheld Thermal Monocular is a compact, high-performance outdoor thermal imaging device designed for professional and recreational users alike.
Equipped with a 640×512 @12μm high-sensitivity infrared detector, the TJ650 delivers sharp, detailed imaging even in total darkness. Its Full HD 1920×1080 AMOLED display ensures excellent visual clarity, while lightweight construction and an impressive 12-hour continuous operating time make it the perfect companion for long-duration night observation, hunting, security patrols, and outdoor adventures.

640×512@12μm infrared resolution

50mm, F1.0 lens focal length

8.8°×7° field of view (FOV)

50Hz frame rate



High-Resolution Thermal Imaging

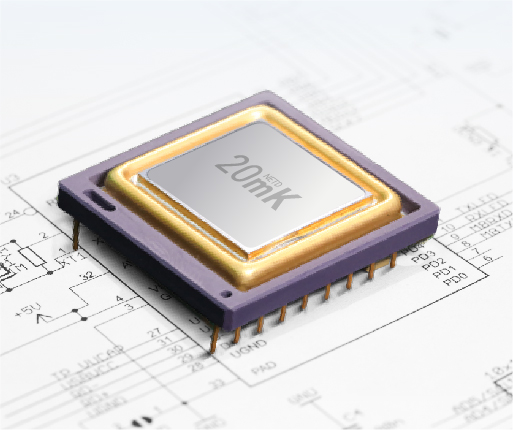

Utilizing a 640×512 @12μm VOx uncooled infrared detector with NETD ≤20mK, the TJ650 captures even the most subtle temperature variations, providing ultra-clear thermal imagery in complex environments.

tj660lz

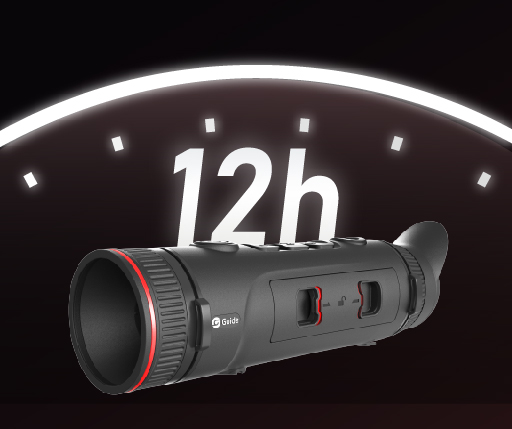

Extended Battery Life
Powered by two 18650 batteries, the device delivers up to 10–12 hours of continuous operation, ensuring long-lasting field performance without frequent recharging.

handheld thermal monocular tj650

Lightweight and Portable Design
Weighing only 546g, the TJ650 offers unmatched portability and comfort for extended outdoor use—perfect for hikers, explorers, and security professionals on the move. handheld thermal monocular tj650

Full HD AMOLED Display
A 0.39-inch 1920×1080 AMOLED display provides superior color contrast and image detail, equivalent to viewing on a 70-inch screen from 2.5 meters, delivering an immersive and comfortable visual experience. handheld thermal monocular tj650

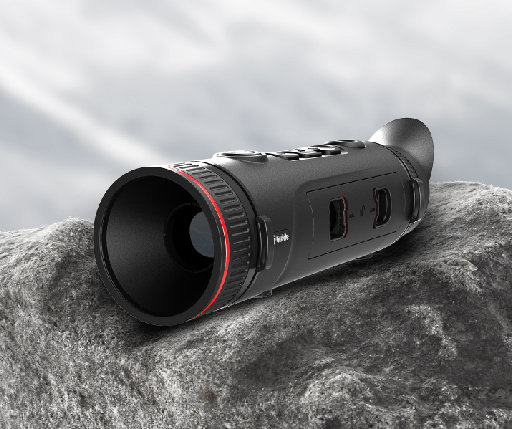

Rugged Durability
Built to handle the toughest environments, the TJ650 is rated IP67 waterproof and dustproof, and resists drops up to 2 meters, providing reliable performance under harsh outdoor conditions. handheld thermal monocular tj650

Parameter Specification
Model TJ650
Detector Type Uncooled VOx infrared detector, 8–14μm
Resolution 640×512 @12μm
NETD ≤20mK
Frame Rate 50Hz
Lens 50mm, F1.0
Field of View (H×V) 8.8° × 7°
FOV (m @100m) 15 × 12
Optical Magnification 3.79× – 30.32×
Detection Range (Human) Up to 2600m
Focus Mode Manual focus
Display Type 0.39″ AMOLED, 1920×1080
Color Palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue, Sepia
Eyepiece 16mm eye relief, ±6 diopter, 18× magnification
Wireless Connectivity Wi-Fi 2.4G / 5G, Bluetooth
Interfaces USB Type-C (Power / Data)
Built-in Modules Microphone, Compass, Gyroscope, Bluetooth
Image/Video Capture Supported (Photo & Video with Audio)
Internal Storage 64GB
Battery Type 18650 × 2
Operating Time Up to 10–12 hours
Operating Temperature -20°C to +50°C
Protection Rating IP67 (2m drop resistant)
Weight 546g
Dimensions (L×W×H) 243 × 66 × 66mm
Standard Accessories Main unit, hand strap, 2×18650 batteries, charger, USB Type-C cable, 5V/2A power adapter, quick start guide, warranty card
Optional Accessories Bluetooth remote control, additional 18650 batteries
