Specification:

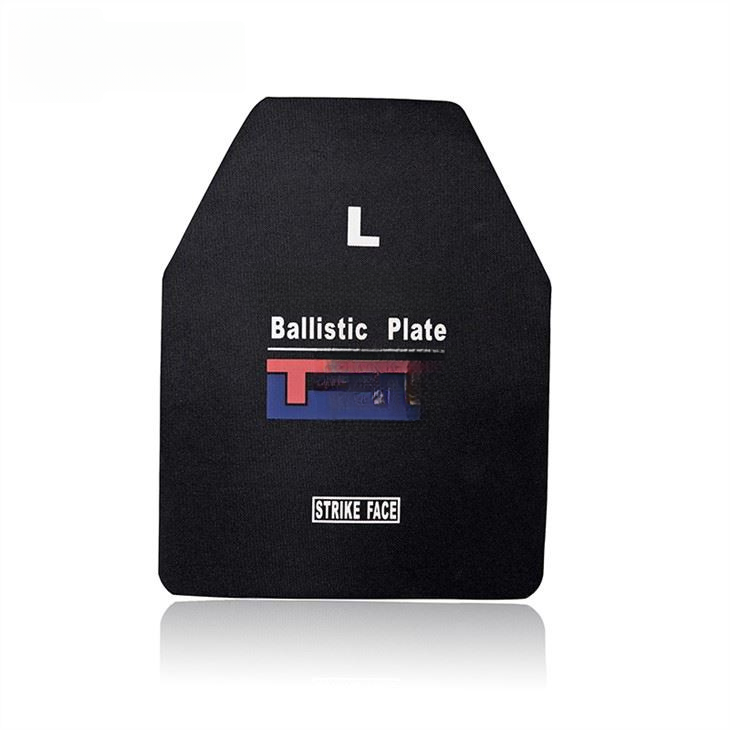

Our ESAPI plates have been tested in several laboratory over the world.
* The ESAPI plates stop the following threats:
* Several shots for 7.62×51 M80 NATO
* Several shots for 7.62×39 AK47 MSC
* Several shots for 5.56×45 SS109/M193
* One shot for 7.62×63 M2 AP or 7.62x54R API

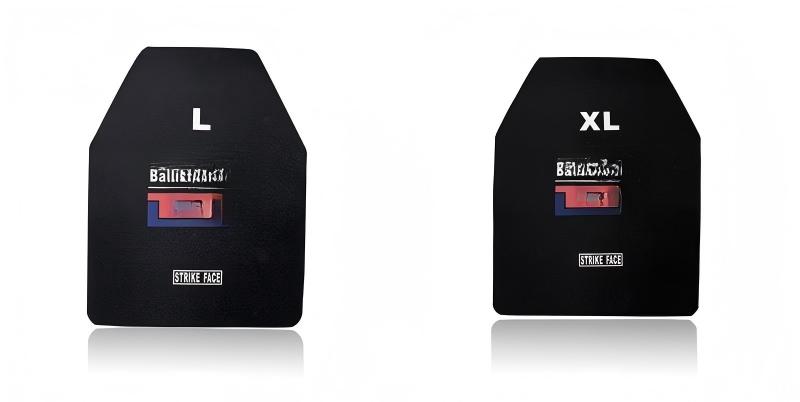

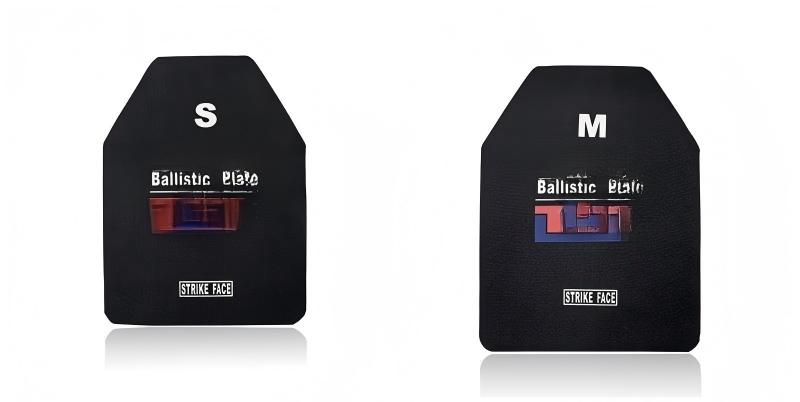

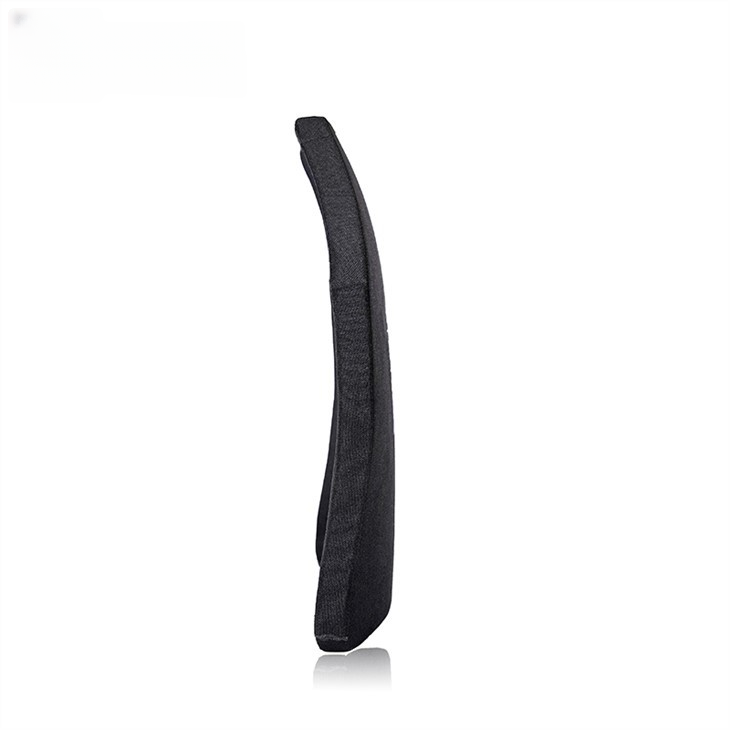

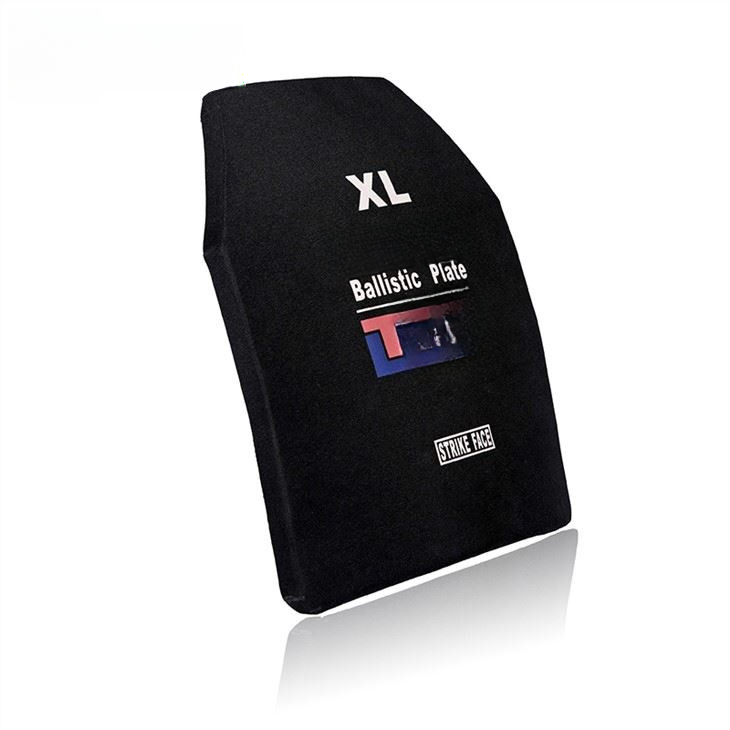

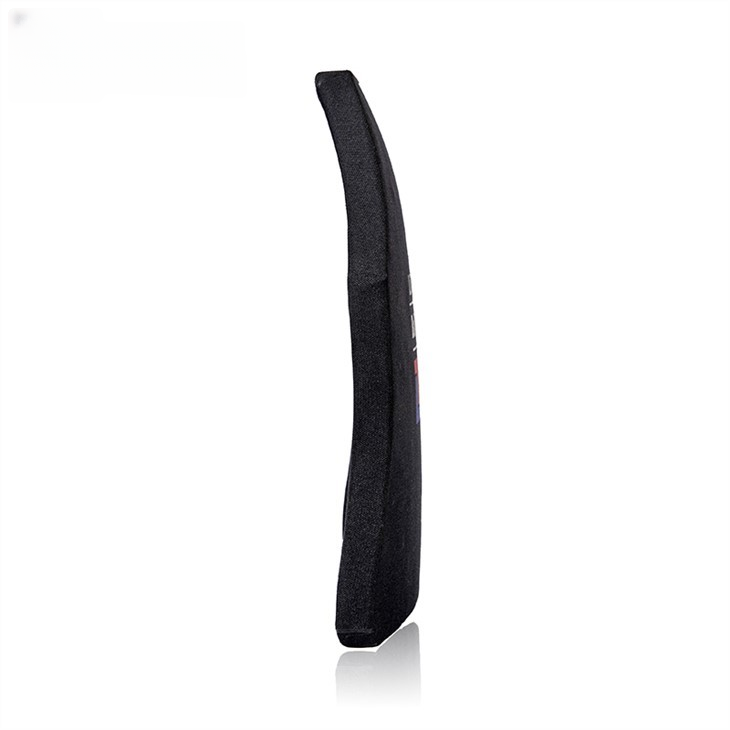

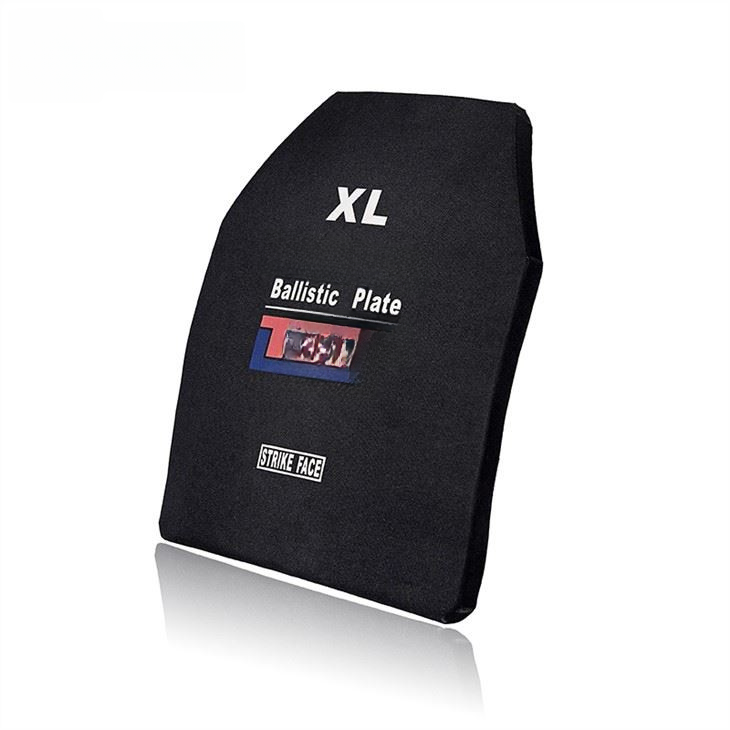

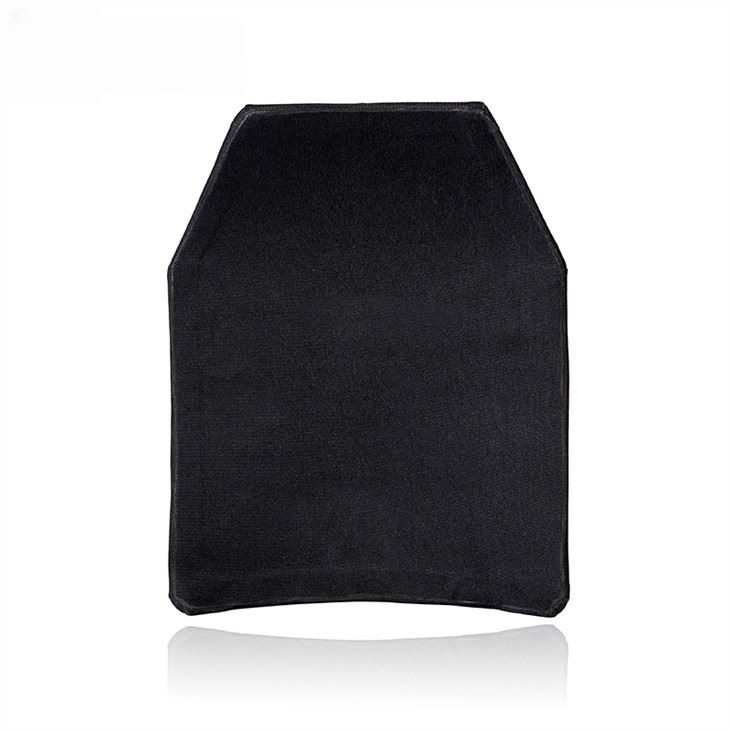

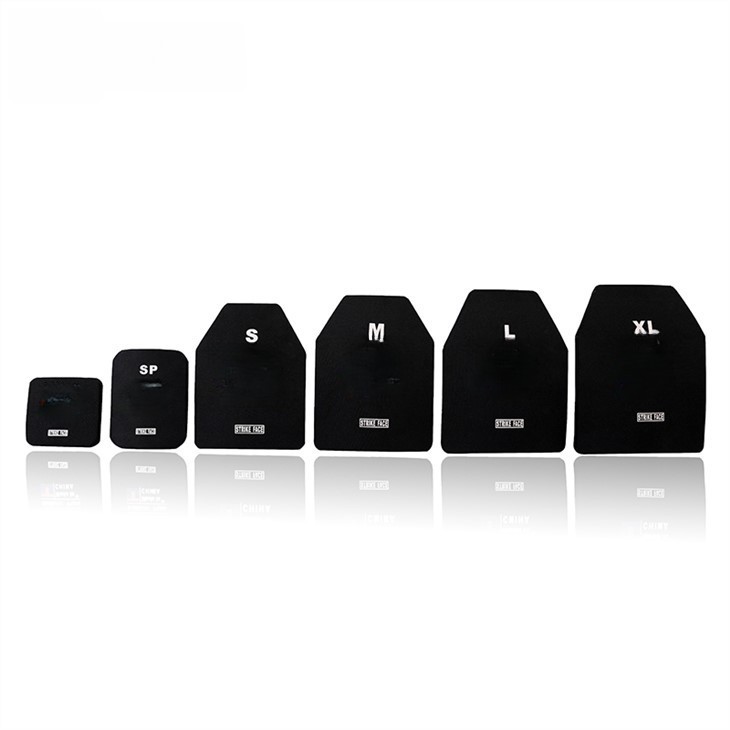

| Model | Size | Ceramic Coverage | Weight | Thickness | Curvature | Protection Level |
| MS-4E285361SA | 285*361 | 280*356mm | 3.75±0.1kg | 27±2mm | Multi | NIJ0101.06 Level IV |
| MS-4E265342SA | 265*342 | 260*337mm | 3.23±0.1kg | 27±2mm | Multi | NIJ0101.06 Level IV |
| MS-4E246323SA | 246*323 | 241*318mm | 2.95±0.1kg | 27±2mm | Multi | NIJ0101.06 Level IV |
| MS-4E227303SA | 227*303 | 222*298mm | 2.45±0.1kg | 27±2mm | Multi | NIJ0101.06 Level IV |

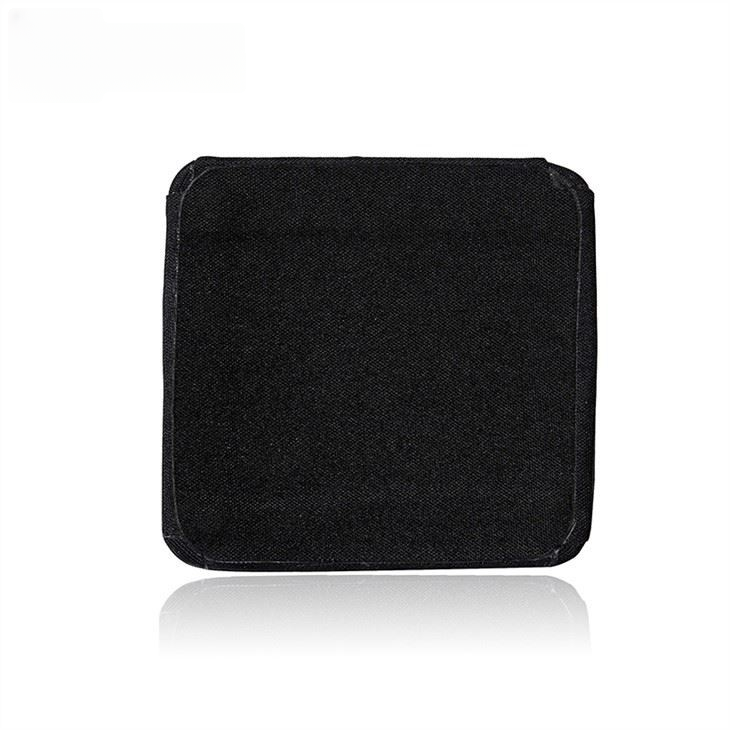

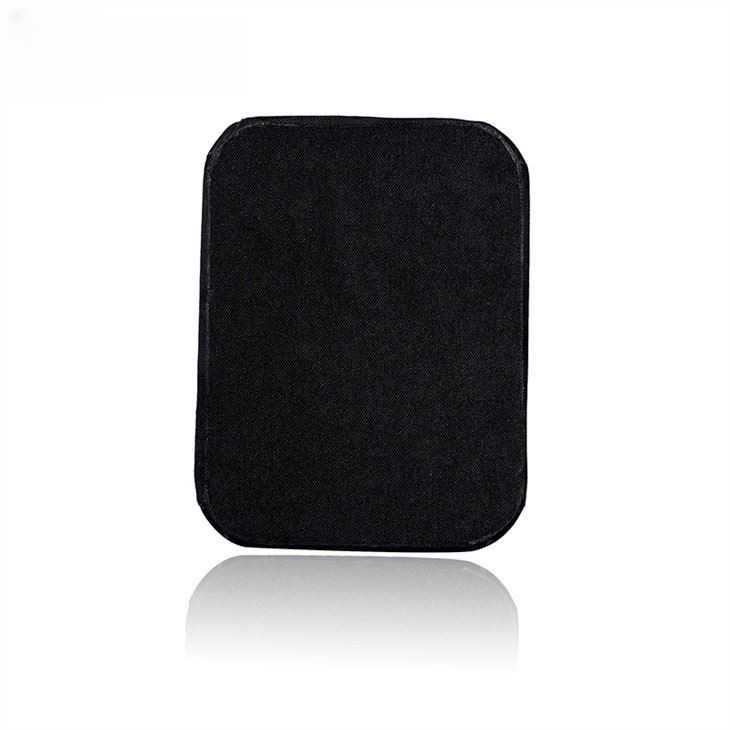

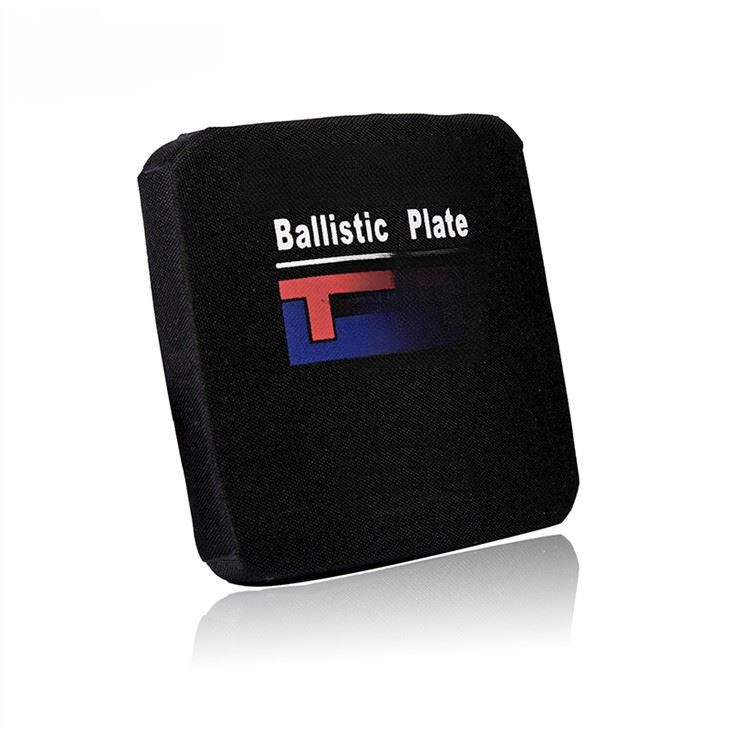

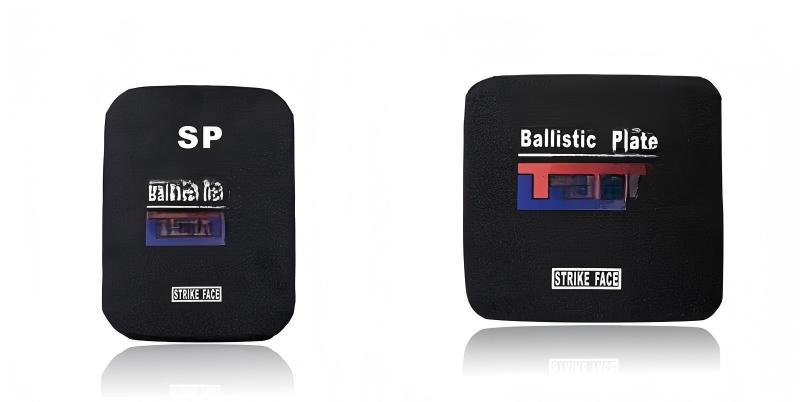

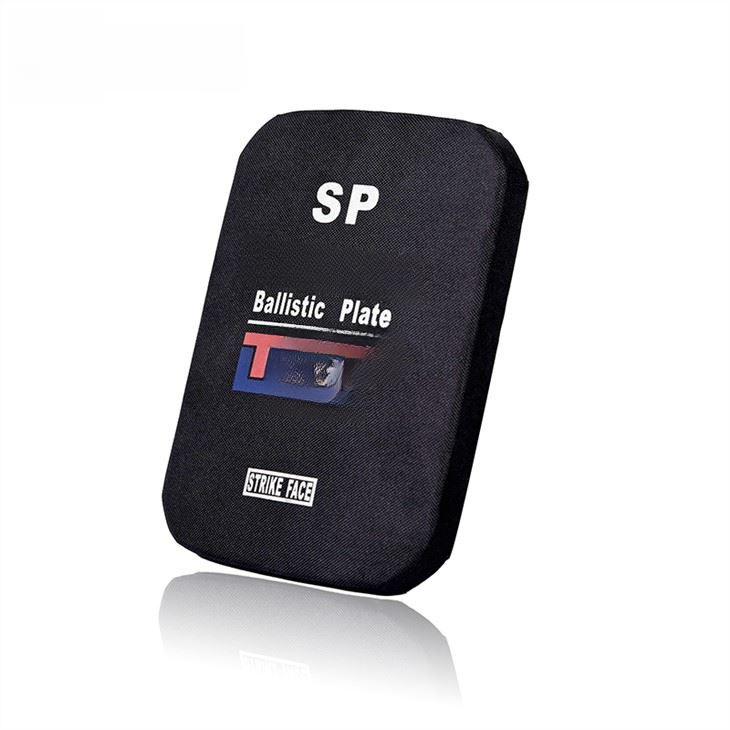

| S-4T154205SA | 154*205 | 150*200mm | 1.10±0.05kg | 27±2mm | Single | NIJ0101.06 Level IV |

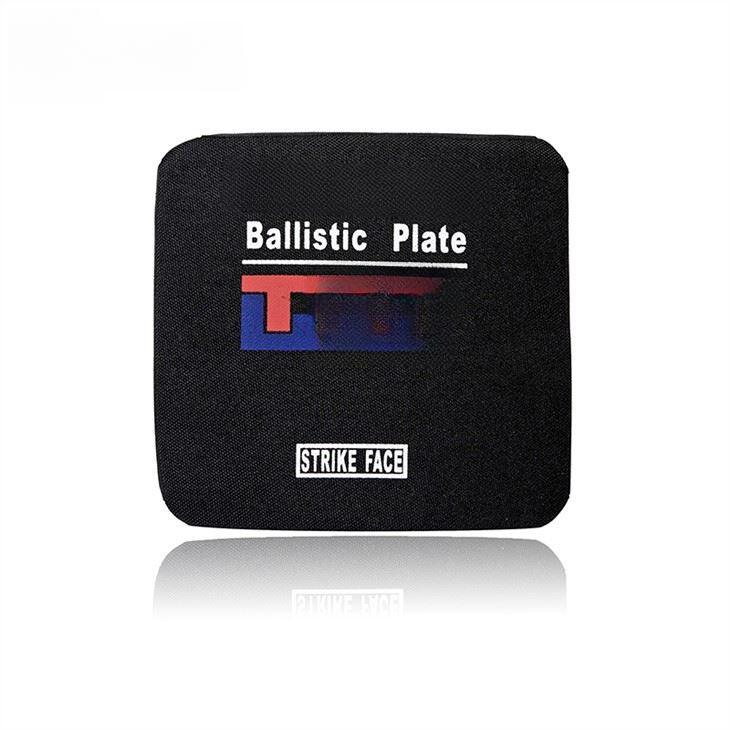

| S-4T150150SA | 150*150 | 140*140mm | 0.82±0.05kg | 27±2mm | Single | NIJ0101.06 Level IV |
Product Detail:
Application: Combine with bulletproof vest offer higher protection level.
Original: Zhejiang, China
Price: Negotiable
Material: Monolithic Silicon carbide Ceramic+UHMWPE+Anti BFS Material
Payment term: TT, LC, Paypal.
Delivery date: Negotiable
Packing: Plastic foam bag and thick carton packing.
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 5years
Features:
Light-weight and Tough
Customer-designed Plates with best solution
High ballistic performance
Great diversity of Style, Shape and Curve
Adjust to International ballistic standards
We can do OEM&ODM services
FAQ:
Q1. Is it possible to offer the test report, indicate the protective level and bulletproof performance?
Yes, for sure, we can provide the test reports for each levels.
Q2. Is it possible to order only the half-finished product such as PE plate or ceramic?
Yes it is acceptable, bulletproof composite materials offer excellent strength resistance, SiC and B4C ceramic with high hardness, low density and porosity, which can be molded to a great variety of shapes and size, is practiced in manufacturing protective hard armor plates, shield, armor vehicles and security house, And we also produce various of density UHMWPE fabric, Backing Plate according to different protective level.
Q3. How many bulletproof plates should I buy?
It depends on how much protection you desire, SWAT teams and those who expect to be shot at from the front wear one ballistic plate in the chest pocket. Analyze your unique situation to decide on how many plates you will need.
Q4. What is the protective level of this plate?
Armor Plate meets the ballistic requirements of NIJ 0101.06 perfectly, in the meantime, we can offer other solutions which can meet international standards.
Q5. How long is the life?
Commonly 5 Years
Q6. Is this the best lightweight bulletproof plate from your company?
We can always provide the best solution according to the customers’ request on weight, protective level, Price, So send us your details request, We will offer you the best solution a.s.a.p
Q7. What is the delivery date for the plate?
For small order generally 10 days or negotiation, For large quantity, Please contact us to discuss details.
