640×512 Infrared Resolution
50mm/F1.2 Lens Focal Length
≤30mK Thermal Sensitivity (NETD)
2.8X~22.4X Magnification

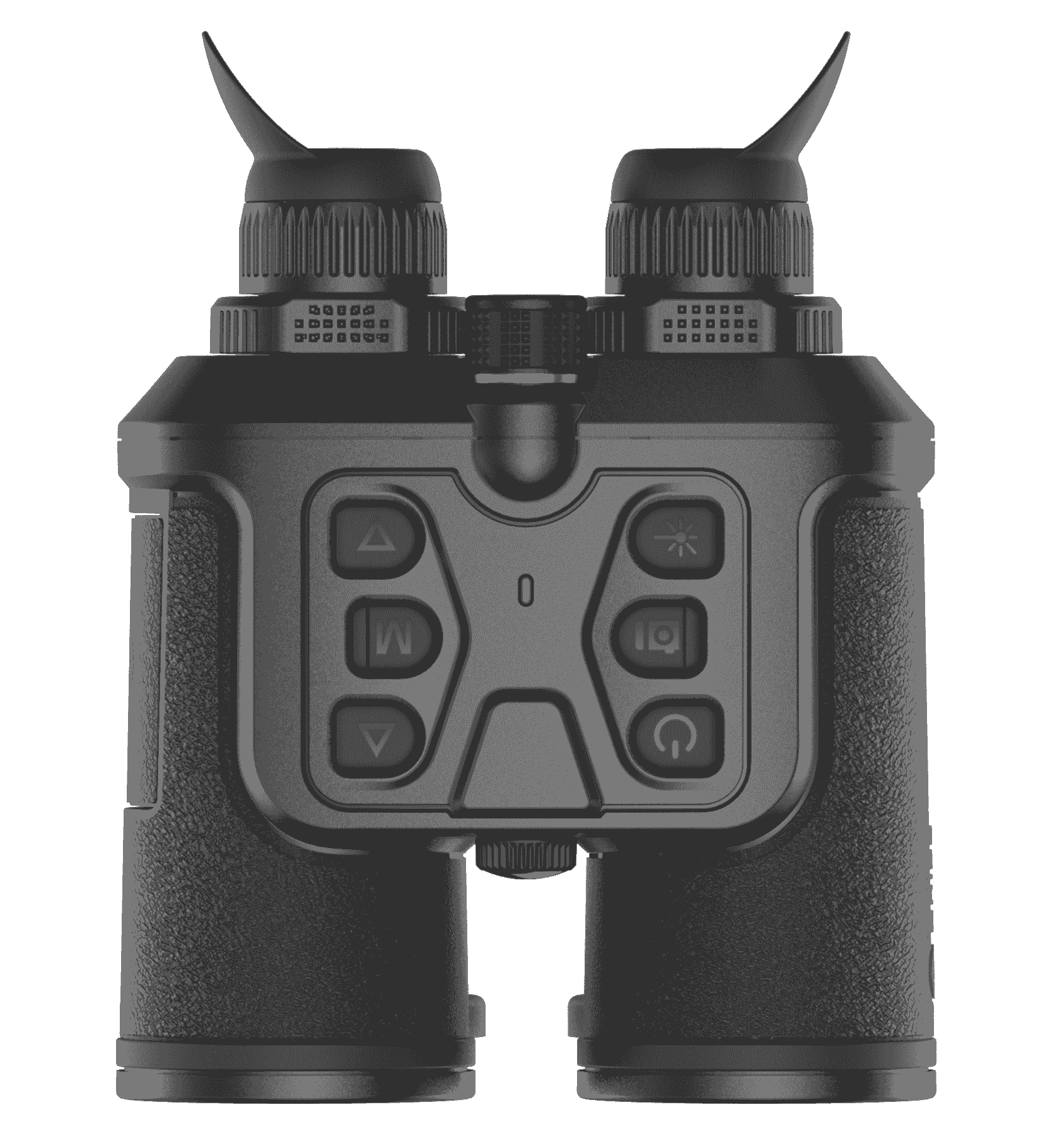

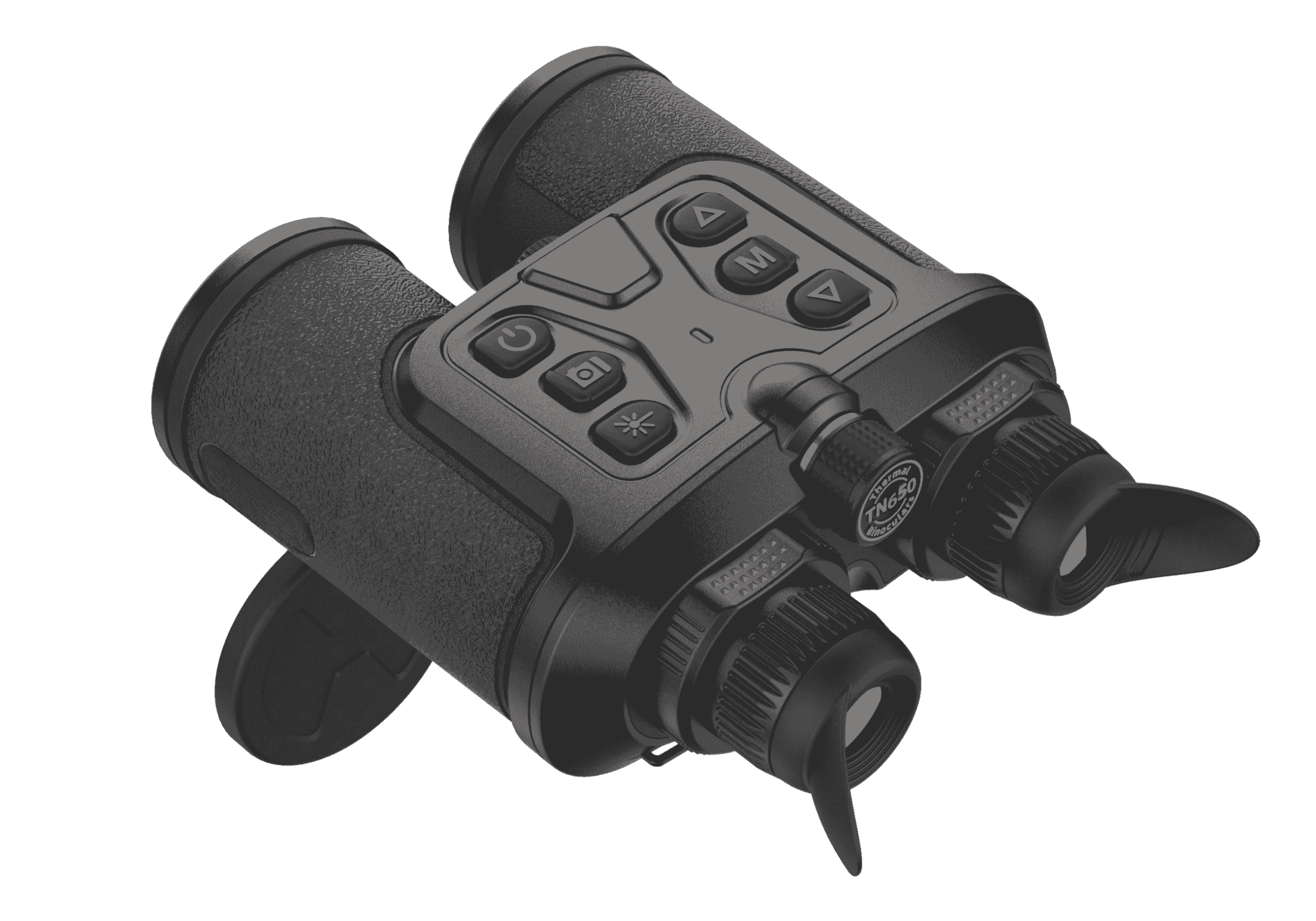

Ergonomic Design for Comfortable Observation
The TN430 continues the traditional binocular form to minimize eye strain during extended use. Adjustable interpupillary distance (60–70 mm) accommodates various users. All control buttons feature raised designs for tactile identification in low-light environments.
Accurate Laser Ranging
In dark environments, activate the laser rangefinder to quickly determine target distance. With precise range data, you can lock onto your subject faster and more confidently.
High-Definition Imaging, Day or Night
Built with a high-sensitivity VOx uncooled infrared detector (640×480 or 400×300 options) operating at 50 Hz, the TN430 delivers smooth, detailed infrared imagery of moving targets — ensuring total situational awareness.
Full-Color High-Resolution OLED Display
A 1024×768 full-color OLED display provides high contrast and sharp details, greatly enhancing visual comfort and image fidelity during extended use.
Picture-in-Picture Mode
The dedicated PiP mode highlights the target area in a magnified window while maintaining a wide field of view, allowing quick identification and precise positioning even in complex outdoor scenes.
Smooth Zoom Control
Long-press the up or down key to achieve smooth digital zoom in/out, offering flexible target acquisition and faster searching efficiency.
Multiple Color Palettes
Choose from White Hot, Black Hot, Adjustable Red Hot, Iron Red, Green Hot, Blue Hot, and more to quickly distinguish targets from the background, ensuring all-weather and all-scene performance.
Adaptive Image Modes
Switch instantly among Enhanced, Highlight, and Natural modes. The enhanced and highlight modes reduce noise and emphasize the target against complex backgrounds, adapting intelligently to varying environmental conditions.
Photo & Video Recording + Wi-Fi Sharing
Capture photos and videos anytime. Connect via 2.4 GHz Wi-Fi to the mobile app for real-time preview, remote control, and instant social media sharing.
Rugged and Reliable
Rated IP66 for superior dust, water, and impact resistance (1 m drop-proof). Operates reliably in extreme environments from -30°C to +50°C.
Certified by UN38.3, RoHS, CE, and FCC, ensuring global safety and quality compliance.
| Category | Item | Specification |
|---|---|---|
| Sensor | Type | Vanadium Oxide (VOx) Uncooled Infrared Detector, 8–14μm |
| Resolution | 640×480 @ 12μm | |
| NETD | ≤30mK | |
| Frame Rate | 50Hz | |
| Lens | Focal Length | 50mm, F1.2 |
| Field of View (FOV) | 8.78° × 6.59° | |
| FOV at 100m | 15m × 12m | |
| Magnification | 2.8× ~ 22.4× | |
| Detection Range (Human) | 2600m | |
| Display | Display Type | 0.39″ AMOLED, 1024×768 |
| Color Palettes | White Hot, Black Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |
| Eyepiece | Eye Relief: 16mm; Diopter Adjustment: ±6; Interpupillary Distance: 60–70mm (adjustable); Magnification: 13.8× | |
| Hardware Modules | Laser Rangefinder | 1500m |
| Wi-Fi | 2.4G | |
| Interfaces | USB Type-C; Micro HDMI | |
| Others | GPS, Compass, Gyroscope, Bluetooth | |
| System | Photo/Video | Supported |
| Internal Memory | 16GB | |
| Power Supply | Battery | Replaceable 18650 Battery ×2 |
| Operating Time | 5.5 hours | |
| Environmental Parameters | Operating Temperature | -30°C ~ +50°C |
| Protection Rating | IP66 | |
| Physical Parameters | Weight | 880g |
| Dimensions | 162 × 146 × 70 mm | |
| Standard Accessories | Main Unit, Lens Cover, Detachable Light-Shielding Eyecups ×2, Shoulder Strap, Carrying Bag, Dual 18650 Battery Charger, 18650 Batteries ×2, 5V 2A Power Adapter, USB Type-C Cable, Micro HDMI Cable, Quick Start Guide | |
| Optional Accessories | Mounting Bracket, Bluetooth Remote Control |
