Infrared Resolution: 400×300@12μm
Lens Focal Length: 35mm, F1.0
Focus Mode: Manual Focus
Image Modes: 5 Modes

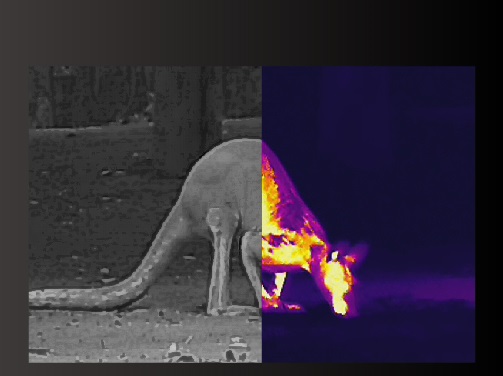

Triple Fusion — Thermal, Visible, and Laser Integration

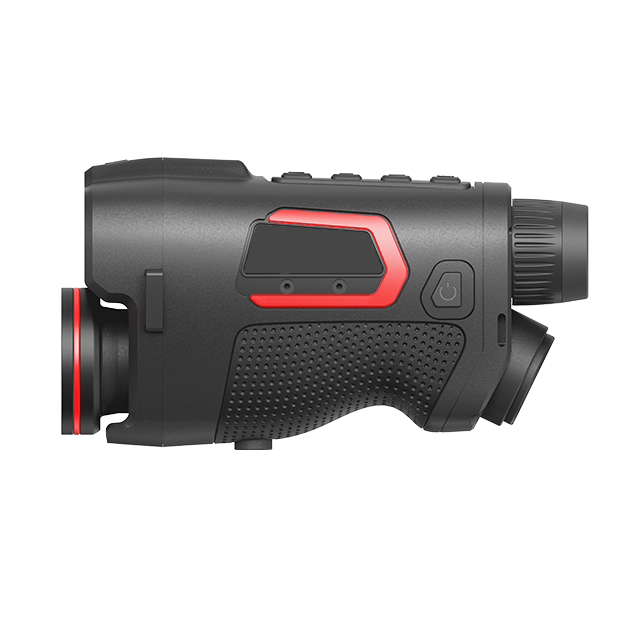

The Handheld Thermal Monocular combines infrared imaging, visible light, and laser ranging technologies to provide 24-hour, all-weather observation capability. Enables users to effectively search, identify, and locate targets in complex outdoor environments.

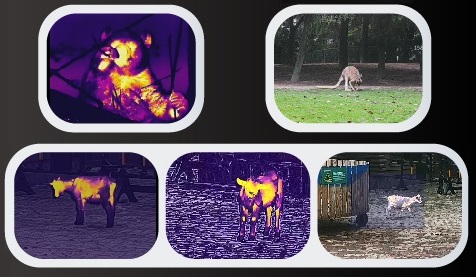

Five Scene Modes — Optimized for Every Scenario
The Handheld Thermal Monocular equipped with five intelligent scene modes, the TL430 enhances target visibility under various conditions while retaining background details, ensuring optimal imaging performance in different terrains and lighting environments.
High-Definition Imaging with Exceptional Detail
Featuring a 12μm high-sensitivity thermal detector, 1920×1080 low-light CMOS sensor, and 1920×1080 AMOLED display, the TL430 delivers outstanding clarity and fine detail. Even subtle features such as branches, leaves, and terrain contours remain distinctly visible.
Built-in 600m Laser Rangefinder
An integrated high-precision laser rangefinder enables accurate distance measurement from 5 to 600 meters with ±1m accuracy. Instantly acquire precise target distance information — no calibration required.

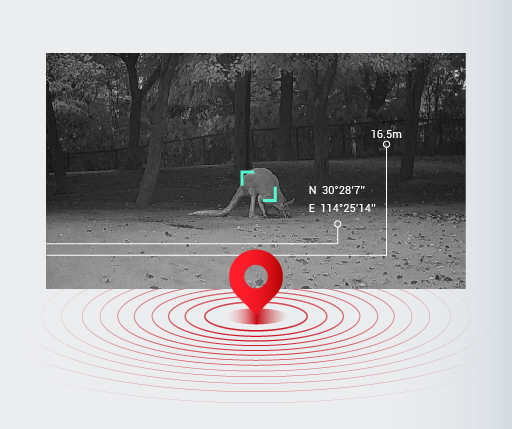

Integrated GPS for Real-Time Target Location
The built-in GPS module provides precise latitude and longitude coordinates for target positioning. Combined with a laser rangefinder, gyroscope, and electronic compass, it ensures rapid and reliable target tracking and orientation awareness.
| Item | Specification |
|---|---|
| Sensor | Infrared: Vanadium Oxide Uncooled Detector, 8–14μmVisible: CMOS |
| Resolution | Infrared: 400×300@12μmVisible: 1920×1080@4μm |
| NETD | ≤30mK |
| Frame Rate | 50Hz |
| Lens | Infrared: 35mm, F1.0Visible: 22mm, F1.5 |
| Field of View (FOV) | 7.8° × 5.9° |
| FOV @100m | 14m × 10m |
| Magnification | 2.3x–9.2x |
| Detection Range (Human) | 1800m |
| Focusing | Manual |
| Display | 0.39” AMOLED, 1920×1080 |
| Color Palettes | White Hot, Black Hot, Red Hot, Iron Red, Blue |
| Scene Modes | Day, Night, Low Light |
| Image Modes | Thermal, Visible, Fusion 1, Fusion 2, Fusion 3 |
| Eyepiece | Eye Relief: 15mm, Diopter: -4~+4, Magnification: 13.8x |
| Laser Rangefinder | 600m, Accuracy ±1m |
| Laser Pointer | 200m |
| Wi-Fi | 2.4GHz |
| Interface | USB Type-C |
| Modules | GPS, Compass, Gyroscope, Bluetooth |
| Photo/Video | Supported |
| Storage | Built-in 64GB |
| Battery Type | Replaceable 18650×1 |
| Operating Time | Up to 5 hours |
| Operating Temperature | -20°C to +50°C |
| Protection Rating | IP67 |
| Weight | 530g |
| Dimensions | 170×70×90mm |
| Standard Accessories | Main unit, wrist strap, 18650 battery×1, battery charger, USB Type-C cable, power adapter (5V/2A), quick start guide, warranty card |
| Optional Accessories | Bluetooth remote control, extra 18650 battery, dovetail rail |
